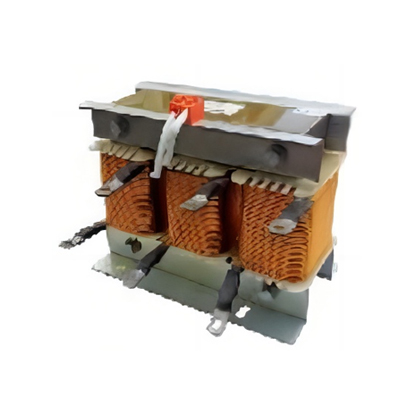

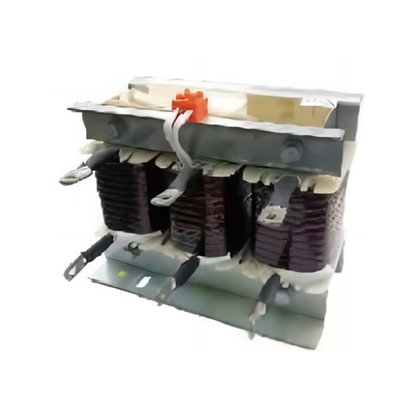

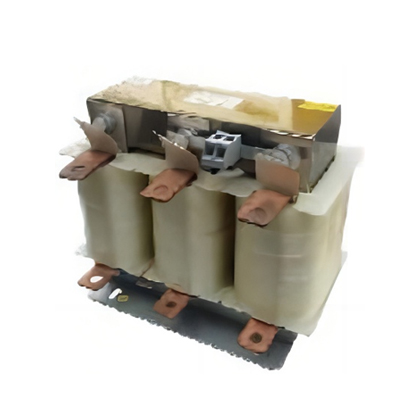

A large number of inductive components such as motors and transformers reduce the power factor of the power supply. For this reason, parallel capacitors are commonly used for compensation. Capacitors are easily damaged and have a short service life. To protect the capacitor, a reactor is often connected in series in the line. It also plays a certain filtering role.
1. Rated Frequency 50/60Hz
2. Rated Current 5 ~ 2000A
3. Rated Voltage 220V-10kV
4. Temperature Rise ≤95K
5. Noise ≤65dB
6. Three-phase Equilibrium Degree -5 ~ +5%
7. Dielectric Strength core-winding, winding-winding 3000VAC/50Hz/60s, no electric arc or electric breakdown
8. Insulation Resistance 1000VDC, ≥100MΩ
9. Insulation Class F、H
10. Protection Class IP00-IP20
11. Reactance rate 6%、7%、14%
12. Pn Performance range Pn 5 ~ 100 kvar
13. Monitoring Temperature switch is integrated, contacts are fitted on terminals.
14. Ambient Temperature -25 ~ +40 °C
15. Working Altitude ≤2000 m
16. Storage Temperature -25 ~ +55 °C
17. Transport Temperature -25 ~ +70 °C
18. Permissible Humidity Rating Humidity 5 %... 95 % occasional condensation permissible
IEC 60076-6 Reactors
GB/T1094.6 Reactors
JB9644 Reactors or semiconductor electric drive

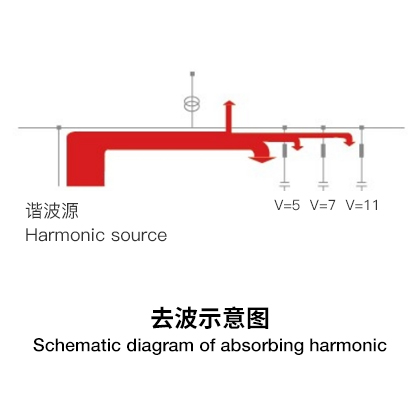

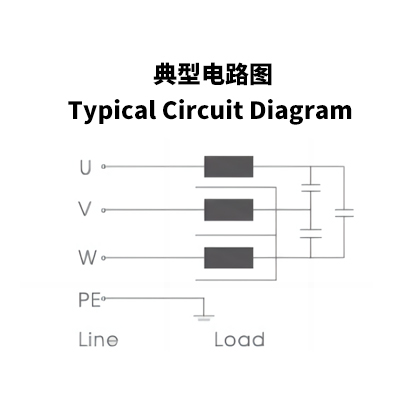

The capacitor in the circuit plays the role of reactive power compensation for the circuit. To protect the capacitor, a reactor is usually connected in series in the circuit. Reactors with different reactance rates have different suppression effects on high-order harmonics. Reactive power compensation reactors and capacitors need to be used in pairs.
型號 | 圖號 | 補償容量 | 電感系數 | 外形尺寸 | 安裝尺寸 | 額定電流 | 連接 | 單臺的近似總重 |
Picture No. | Filter Bank Capacity Qc(kvar) | Inductance | Dimension (MAX) L*W*H (mm) | Mounting Dimension D1*W1 (mm) | Rated | Connection | Total weight per PU approx. (kg) | |
P=6%，L=恒定，不超過1.82·Ithmax fRES=210 Hz Choking Factor p=6%, L=constant, no more than 1.82·Ithmax fRES=210Hz | ||||||||
RPCR002800400SA06X | A | 5.00 | 6.12 | 195*100*210 | 120*72 | 8.0 | K | 3.70 |
RPCR004300400SA06X | A | 7.50 | 4.081 | 195*100*210 | 120*92 | 12.0 | K | 5.00 |
RPCR005700400SA06X | A | 10.0 | 3.06 | 195*150*165 | 120*92 | 16.0 | K | 6.40 |
RPCR007100400SA06X | A | 12.5 | 2.45 | 195*165*165 | 120*112 | 20.0 | K | 9.10 |
RPCR008500400SA06X | A | 15.0 | 2.04 | 195*165*165 | 120*112 | 24.0 | K | 9.30 |
RPCR011300400SA06X | A | 20.0 | 1.53 | 230*160*185 | 150*95 | 32.0 | K | 13.0 |
RPCR014200400SA06B | B | 25.0 | 1.22 | 250*165*200 | 182*95 | 40.0 | K | 18.3 |
RPCR017000400SA06B | B | 30.0 | 1.02 | 250*170*200 | 182*105 | 50.0 | K | 18.0 |
RPCR022700400SA06B | B | 40.0 | 0.77 | 250*180*200 | 182*115 | 65.0 | F | 25.3 |
RPCR028400400SA06B | B | 50.0 | 0.61 | 290*185*220 | 214*118 | 80.0 | F | 34.1 |
RPCR034000400SA06B | B | 60.0 | 0.51 | 290*200*220 | 214*128 | 95.0 | F | 35.6 |
RPCR045400400SA06B | B | 80.0 | 0.38 | 320*205*285 | 243*130 | 130.0 | F | 42. |
RPCR051000400SA06B | B | 90.0 | 0.34 | 320*210*310 | 243*135 | 145.0 | F | 47 |
RPCR056700400SA06B | B | 100.0 | 0.31 | 320*220*310 | 243*140 | 160.0 | F | 51.9 |
P=7%，L=恒定，不超過1.66·Ithmax fRES=189 Hz Choking Factor p = 7%, L=constant, no more than 1.66·Ithmax fRES=189Hz | ||||||||
RPCR003500400SA07X | A | 5.00 | 7.2 | 195*100*210 | 120*72 | 7.5 | K | 3.30 |
RPCR005300400SA07X | A | 7.50 | 5 | 195*100*210 | 120*92 | 11.0 | K | 4.80 |
RPCR007000400SA07X | A | 10.0 | 3.8 | 195*150*165 | 120*92 | 15.0 | K | 5.9 |
RPCR008800400SA07X | A | 12.5 | 3 | 195*165*165 | 120*112 | 19.0 | K | 8.60 |
RPCR010500400SA07X | A | 15.0 | 2.5 | 195*165*165 | 120*112 | 23.0 | K | 8.80 |
RPCR014000400SA07X | A | 20.0 | 1.8 | 230*160*185 | 150*95 | 30.0 | K | 12.8 |
RPCR017500400SA07B | B | 25.0 | 1.4 | 250*165*200 | 182*95 | 38.0 | K | 19.1 |
RPCR021000400SA07B | B | 30.0 | 1.2 | 250*170*200 | 182*105 | 145.0 | K | 19.6 |
RPCR028000400SA07B | B | 40.0 | 0.95 | 250*180*200 | 182*115 | 60.0 | F | 24.7 |
RPCR035000400SA07B | B | 50.0 | 0.75 | 290*185*220 | 214*118 | 75.0 | F | 26.5 |
RPCR042000400SA07B | B | 60.0 | 0.62 | 290*200*220 | 214*128 | 90.0 | F | 34.1 |
RPCR056000400SA07B | B | 80.0 | 0.46 | 320*205*285 | 243*130 | 122.0 | F | 40.0 |
RPCR063000400SA07B | B | 90.0 | 0.43 | 320*210*310 | 243*135 | 130.0 | F | 45.0 |
RPCR070000400SA07B | B | 100.0 | 0.37 | 320*220*310 | 243*140 | 150.0 | F | 50.0 |
P=14%，L=恒定，不超過1.4·Ithmax fRES=134 Hz Choking Factor p=14%, L=constant, no more than 1.4·Ithmax fRES=134Hz | ||||||||
RPCR007000400SA14X | A | 5.00 | 16.6 | 195*120*210 | 120*92 | 7.0 | K | 5.10 |
RPCR010500400SA14X | A | 7.50 | 11.1 | 195*120*210 | 120*112 | 10.0 | K | 8.10 |
RPCR014000400SA14X | A | 10.0 | 8.29 | 195*120*210 | 120*112 | 14.0 | K | 9.40 |
RPCR017500400SA14X | A | 12.5 | 6.63 | 195*120*210 | 120*112 | 18.0 | K | 12.0 |
RPCR021000400SA14X | A | 15.0 | 5.53 | 195*120*210 | 182*95 | 21.0 | K | 16.0 |
RPCR028000400SA14X | A | 20.0 | 4.14 | 250*165*200 | 182*115 | 30.0 | K | 18.0 |
RPCR035000400SA14B | B | 25.0 | 3.32 | 290*180-210 | 214*113 | 35.0 | K | 28.0 |
RPCR042000400SA14B | B | 30.0 | 2.76 | 290*185*220 | 214*118 | 42.0 | K | 26.0 |
RPCR056000400SA14B | B | 40.0 | 2.07 | 290 *215*280 | 214*118 | 56.0 | F | 35.0 |
RPCR070000400SA14B | B | 50.0 | 1.66 | 320*230*275 | 243*135 | 70.0 | F | 37.2 |
RPCR084000400SA14B | B | 60.0 | 1.38 | 320*230*3 40 | 243*135 | 85.0 | F | 51.1 |
RPCR112000400SA14B | B | 80.0 | 1.04 | 375*250*320 | 260*165 | 110.0 | F | 54.1 |
RPCR128000400SA14B | B | 90.0 | 0.92 | 375*250*320 | 260*165 | 125.0 | F | 58.0 |
RPCR140000400SA14B | B | 100.0 | 0.829 | 375*265*360 | 260*175 | 140.0 | F | 62.0 |
